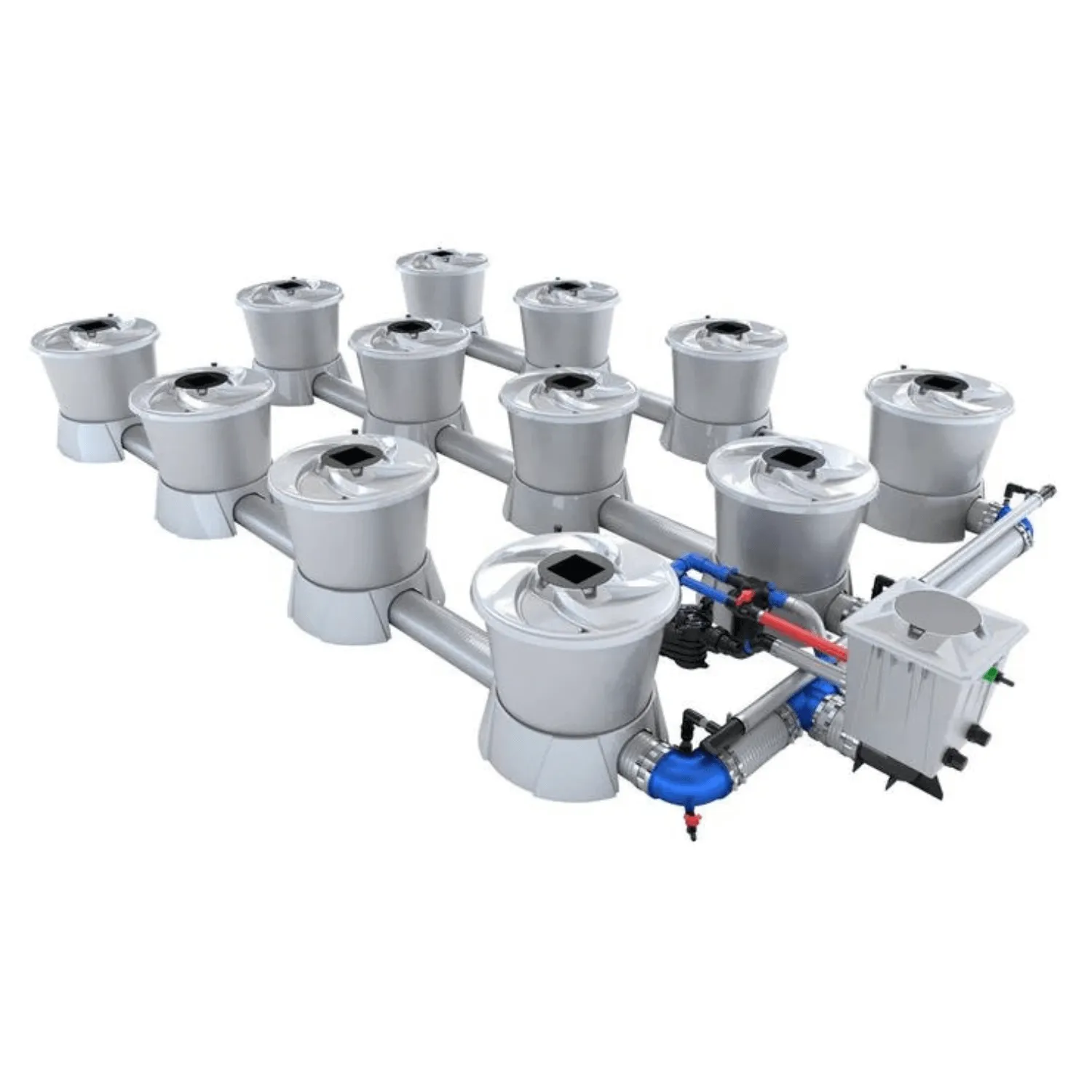

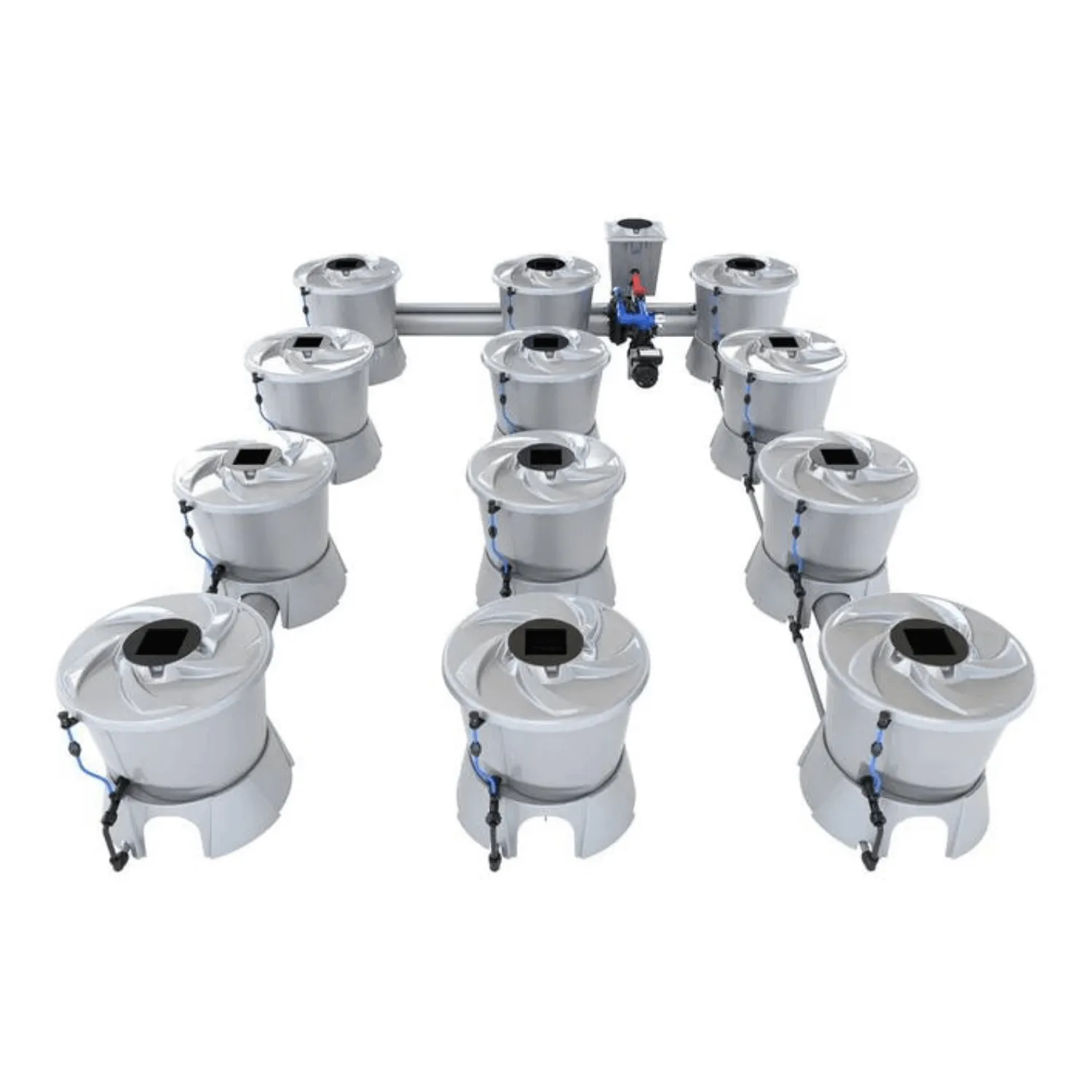

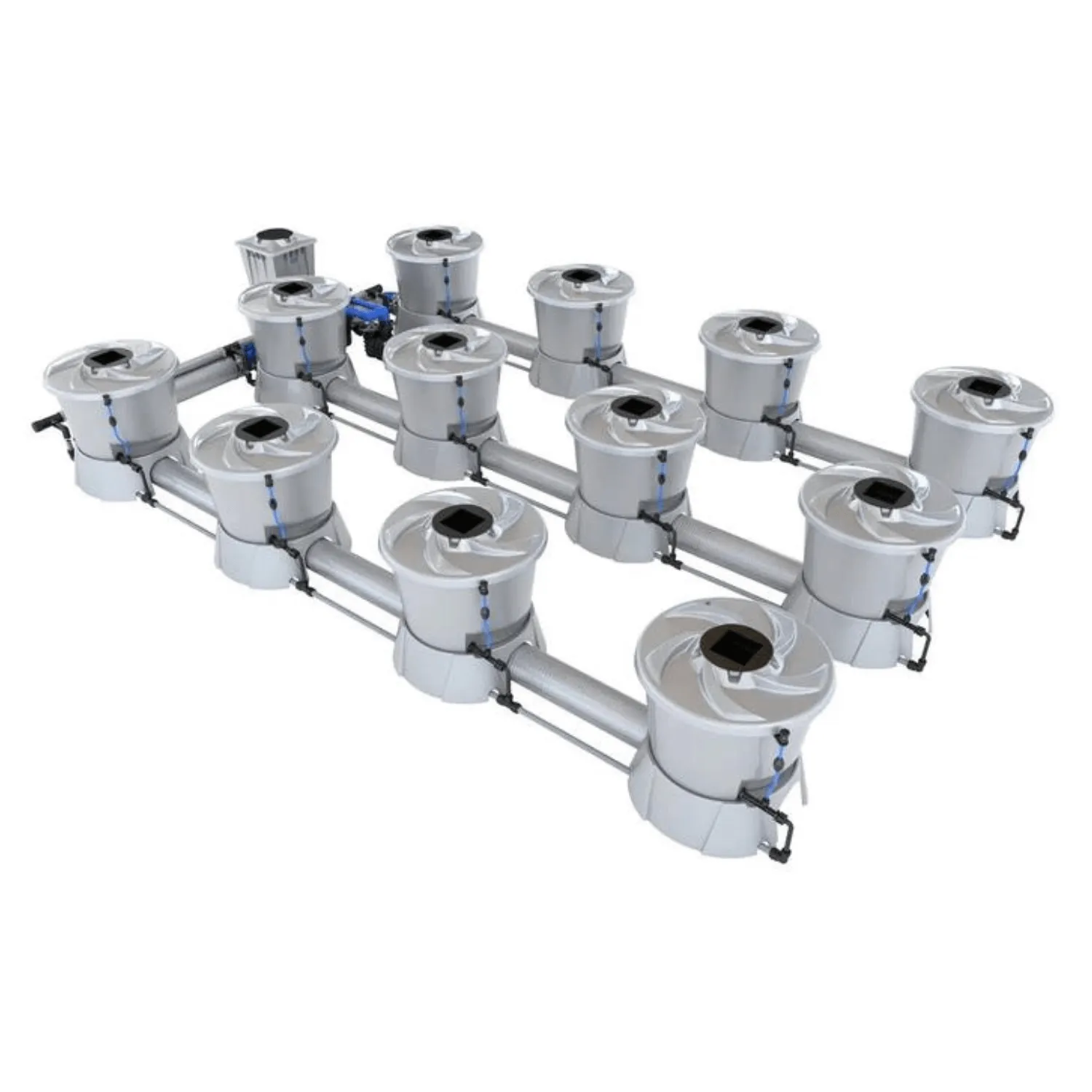

Name: ALIEN Hydroponics V-SYSTEM 12 Pot 3 Row Kit
SKU: 348972

Description

Key V-SYSTEM Benefits: This system offers direct nutrient distribution and maximum oxygen saturation. An air pump is not required as vortex fluid motion is naturally aspirated. It aids in supporting large plants and ensures that the pots and system completely drain, preventing root clogging. The product is made in Britain.

Key V-SYSTEM Features: The system comes with a 15 gallon (58L) V-POT. Additionally, it has a water fill line and total-drainage bases, which enable efficient water and nutrient distribution. It features Venturi injectors and inspection covers. With 5" spiral tubing and 5" Dual-Flow™ fittings, the system ensures efficient circulation. Integrated filtration provides clean water for your plants. It's made with T304 stainless clamps and heavy-duty components for long-lasting durability. It also has push-fit feed connections for easy installation. Additionally, the system includes a JET-STREAM® Vortex™ pump for efficient water and nutrient flow.

Specifications

Product Name: V-SYSTEM 12 Pot 3 Row Kit

Technical Information

Number of pots: 12

Number of rows: 3

Kit total fluid volume: 195.5 gallons (740 L)

Minimum assembled size (can space pots more widely for a larger footprint):

Length: 8' 3.6" (99.6 inches / 2530 mm)

Width: 5' 9.3" (69.3 inches / 1760 mm)

Water Pump Included with the Kit:

Model: V-SYSTEM Vortex Water Pump 550W 120V 13800 l/h

Wattage: 550 watts

Flow Rate: 3646 gal/hr (13800 L/hr)

Recommended water chiller minimum capacity: 264 gallons (1000 L)

Data Sheet

Download the instruction manual:

Download the technical drawing:

Bulk Discount

Buy 2 or more of this item and receive 5% off!

Discount will be automatically applied at checkout.

Kit Contents

The V-SYSTEM 12 Pot 3 Row Kit Includes:

1 x V-SYSTEM Vortex Water Pump 550W 120V 13800 l/h

12 x V-Pot 58L

12 x V-Pot Base

12 x V-Pot Lid

12 x V-Pot Lid Inspection Cover

12 x Square Net Pot

12 x V-Pot Clip

12 x Air Filter for V-SYSTEM Venturi, 6mm

12 x Silencer for Venturi

12 x Venturi Fitting

12 x Venturi Air Inlet Pipe 6mm Blue (2X 4")

12 x Venturi Inlet Fitting for 22mm Pipe

13 x Nut 5"

13 x Washer 5" Green Silicone

32 x 5" Stainless Steel Clamp

1 x Distribution Tee 40mm

3 x DM Push-Fit Elbow 22-15mm V-SYSTEM

3 x DM Push-Fit Elbow 22mm V-SYSTEM

9 x DM Push-Fit Tee 22-15mm V-SYSTEM

1 x 1/2" Drain Cap Fitting

1 x Drain Tap 1/2"-16mm Barb

2 x Elbow 5" Barbed with Drain Point

4 x Elbow 5" Threaded Dual-Flow

1 x Filter Manifold Complete 40mm

1 x Float Valve

1 x V-SYSTEM Header Pot 20L 40mm

1 x Silver Lid

1 x Header Pot Blank

1 x Hosetail 16mm-3/4" Female Green

12 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed

1 x Pipe 32mm Red 1 Meter Spiral

4 x Pipe 40mm Silver 1 Meter Spiral

13 x Pipe 5" Silver Spiral 80cm

2 x Tee 5" Barbed

9 x Tee Threaded 5" Dual-Flow

2 x Threaded Tank Connector 1"

1 x Vortex Pump Inlet Manifold 40mm Short

2 x 1" Cap for Chiller Connections

1 x Tank Connector Straight 32mm

1 x Tank Connector Straight 40mm

1 x Terminal Manifold Left 40mm

1 x Terminal Manifold Center 40mm

1 x Terminal Manifold Right 40mm

30 x 22mm Insert for 22mm Rigid Pipe

2 x Clamp Size 2

10 x Clamp Size 3

1 x 8mm Screwdriver for 5" Clamp

1 x Wrench 5"

1 x Wrench for Float Valve

1 x 8mm Socket for 5" Clamp

1 x Pipe Cutter 50mm

3 x Silicone Grease - Food Grade
