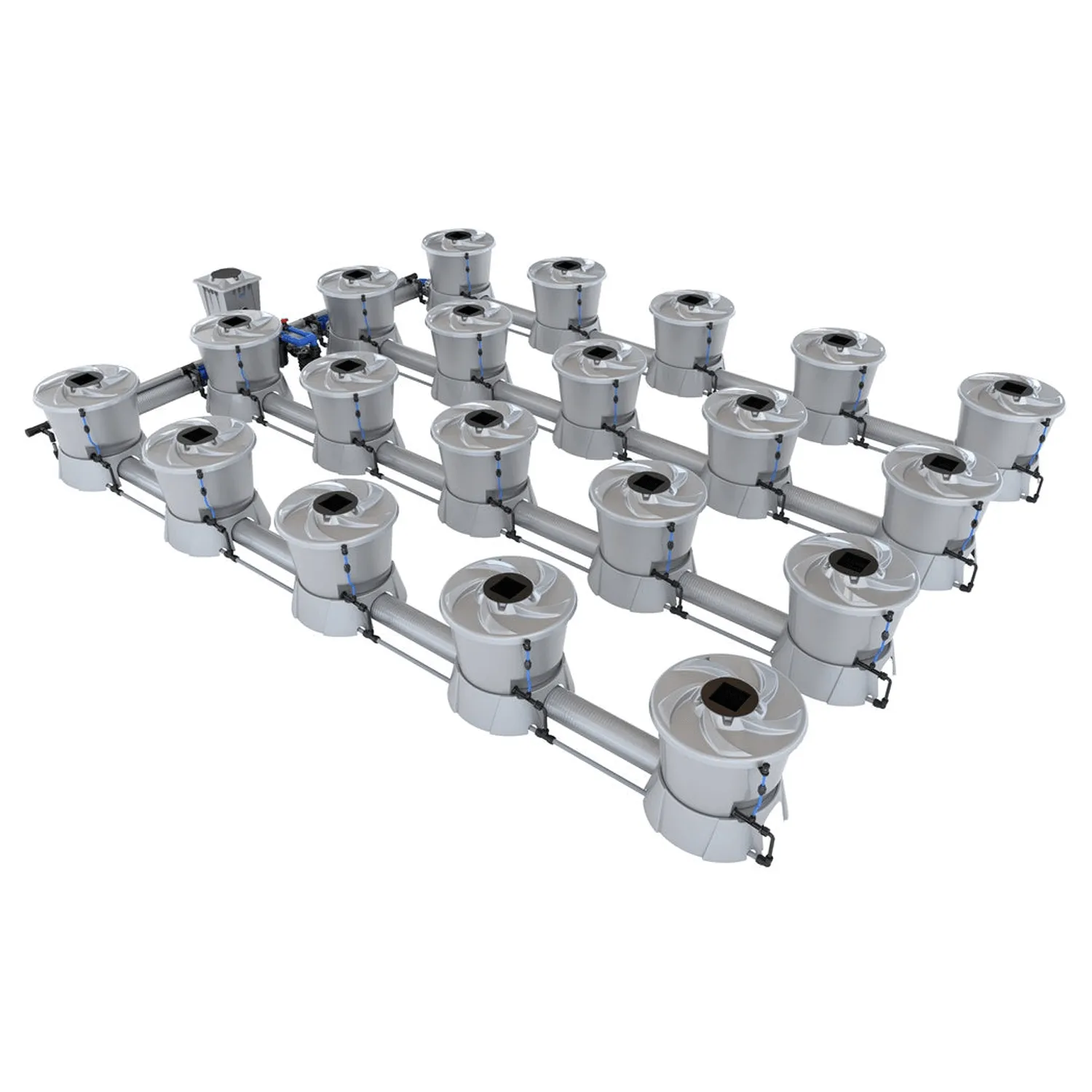

Name: ALIEN Hydroponics V-SYSTEM 20 Pot 4 Row Kit
SKU: 363850

Description

Key V-SYSTEM Benefits: The V-SYSTEM offers direct nutrient distribution and maximum oxygen saturation without the need for an air pump. There's no risk of heat transfer due to its vortex fluid motion. Interestingly, it's naturally aspirated and capable of supporting large plants. In addition, the pots and system drain completely to prevent root clogging. Proudly, it's made in Britain.

Key V-SYSTEM Features: The V-SYSTEM comes with a 15-gallon (58L) V-POT that includes a water fill line and total-drainage bases. Moreover, it features venturi injectors and inspection covers, 5" spiral tubing, and 5" Dual-Flow™ fittings. The integrated filtration system, T304 Stainless clamps, and heavy-duty components assure durability. It also includes push-fit feed connections and a JET-STREAM® Vortex™ pump to provide optimal service.

Specifications

Product Name: V-SYSTEM 20 Pot 4 Row Kit

Technical Information

Number of pots: 20

Number of rows: 4

Kit total fluid volume: 327.0 gallons (1238 L)

Minimum assembled size (can space pots more widely for a larger footprint):

Length: 10' 2.4" (122.4 inches / 3110 mm)

Width: 7' 7.3" (91.3 inches / 2320 mm)

Water Pump Included with the Kit:

Model: V-SYSTEM Vortex Water Pump 1100W 120V 17700 l/h

Wattage: 1100 watts

Flow Rate: 4676 gal/hr (17700 L/hr)

Recommended water chiller minimum capacity: 528 gallons (2000 L)

Data Sheet

Download the instruction manual:

Download the technical drawing:

Bulk Discount

Buy 2 or more of this item and receive 5% off!

Discount will be automatically applied at checkout.

Kit Contents

The V-SYSTEM 20 Pot 4 Row Kit Includes:

1 x V-SYSTEM Vortex Water Pump 1100W 120V 17700 l/h

20 x V-Pot 58L

20 x V-Pot Base

20 x V-Pot Lid

20 x V-Pot Lid Inspection Cover

20 x Square Net Pot

20 x V-Pot Clip

20 x Air Filter for V-SYSTEM Venturi, 6mm

20 x Silencer for Venturi

20 x Venturi Fitting

20 x Venturi Air Inlet Pipe 6mm Blue (2X 4")

20 x Venturi Inlet Fitting for 22mm Pipe

21 x Nut 5"

21 x Washer 5" Green Silicone

50 x 5" Stainless Steel Clamp

1 x Distribution Tee 40mm

4 x DM Push-Fit Elbow 22-15mm V-SYSTEM

4 x DM Push-Fit Elbow 22mm V-SYSTEM

16 x DM Push-Fit Tee 22-15mm V-SYSTEM

1 x 1/2" Drain Cap Fitting

1 x Drain Tap 1/2"-16mm Barb

2 x Elbow 5" Barbed with Drain Point

5 x Elbow 5" Threaded Dual-Flow

1 x Filter Manifold Complete 40mm

1 x Float Valve

1 x V-SYSTEM Header Pot 20L 40mm

1 x Silver Lid

1 x Header Pot Blank

1 x Hosetail 16mm-3/4" Female Green

20 x Pipe 22mm Gray Rigid 1 Meter - Venturi Feed

1 x Pipe 32mm Red 1 Meter Spiral

5 x Pipe 40mm Silver 1 Meter Spiral

22 x Pipe 5" Silver Spiral 80cm

3 x Tee 5" Barbed

16 x Tee Threaded 5" Dual-Flow

2 x Threaded Tank Connector 1"

1 x Vortex Pump Inlet Manifold 40mm Short

2 x 1" Cap for Chiller Connections

1 x Tank Connector Straight 32mm

1 x Tank Connector Straight 40mm

1 x Terminal Manifold Left 40mm

2 x Terminal Manifold Center 40mm

1 x Terminal Manifold Right 40mm

48 x 22mm Insert for 22mm Rigid Pipe

2 x Clamp Size 2

12 x Clamp Size 3

1 x 8mm Screwdriver for 5" Clamp

1 x Wrench 5"

1 x Wrench for Float Valve

1 x 8mm Socket for 5" Clamp

1 x Pipe Cutter 50mm

5 x Silicone Grease - Food Grade
